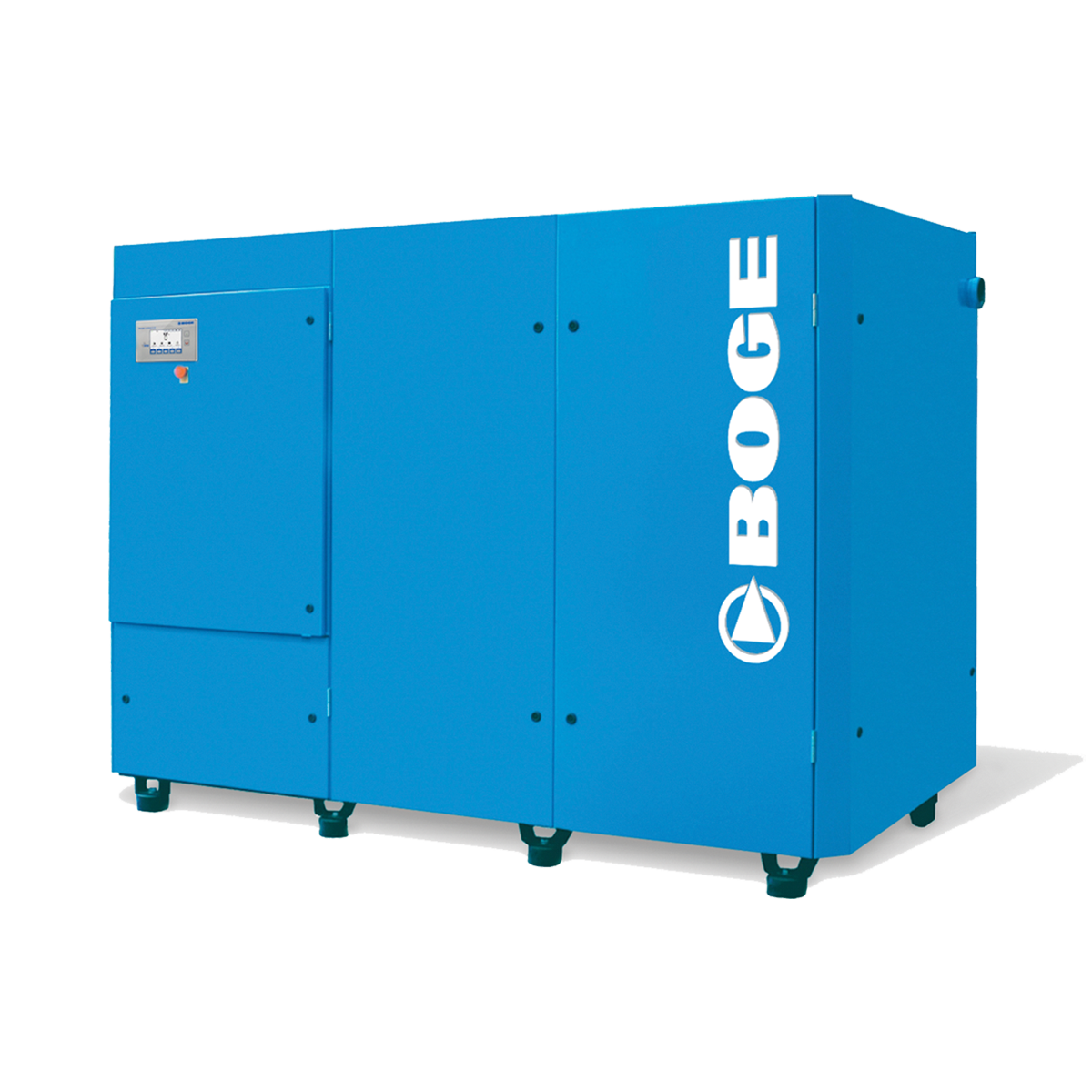

Reliable and efficient even with large compressed air demands: the proven 160kW S Series. The intelligent construction ensures maximum efficiency and safety.
PRODUCT
Screw compressor, oil lubricated
ADVANTAGES
- heat recovery can be integrated
- high free air delivery
- extremely quiet
- focus control
- maximum efficiency
- frequency controlled cooling fan
| BOGE | Pressure | Effective Delivery Volume 50 Hz |
Motor Power | Dimensions W × H × D |
Weight |
|---|---|---|---|---|---|
| Type | barpsig | m3/mincfm | kWPS | mm | kg |
| S 151 | 8115 | 19.400685.0 | 110.0150.0 | 2265 x 1585 x 2005 | 3100 |
| S 151 | 10150 | 17.000600.0 | 110.0150.0 | 2265 x 1585 x 2005 | 3100 |
| S 151 | 13190 | 14.400508.0 | 110.0150.0 | 2265 x 1585 x 2005 | 3100 |
| S 180 | 8115 | 23.300825.0 | 132.0180.0 | 2265 x 1585 x 2005 | 3200 |
| S 180 | 10150 | 20.800735.0 | 132.0180.0 | 2265 x 1585 x 2005 | 3200 |
| S 180 | 13190 | 17.800630.0 | 132.0180.0 | 2265 x 1585 x 2005 | 3200 |
| S 220 | 8115 | 27.900990.0 | 160.0220.0 | 2265 x 1585 x 2005 | 3200 |
| S 220 | 10150 | 25.100890.0 | 160.0220.0 | 2265 x 1585 x 2005 | 3200 |
| S 220 | 13190 | 21.700770.0 | 160.0220.0 | 2265 x 1585 x 2005 | 3200 |
