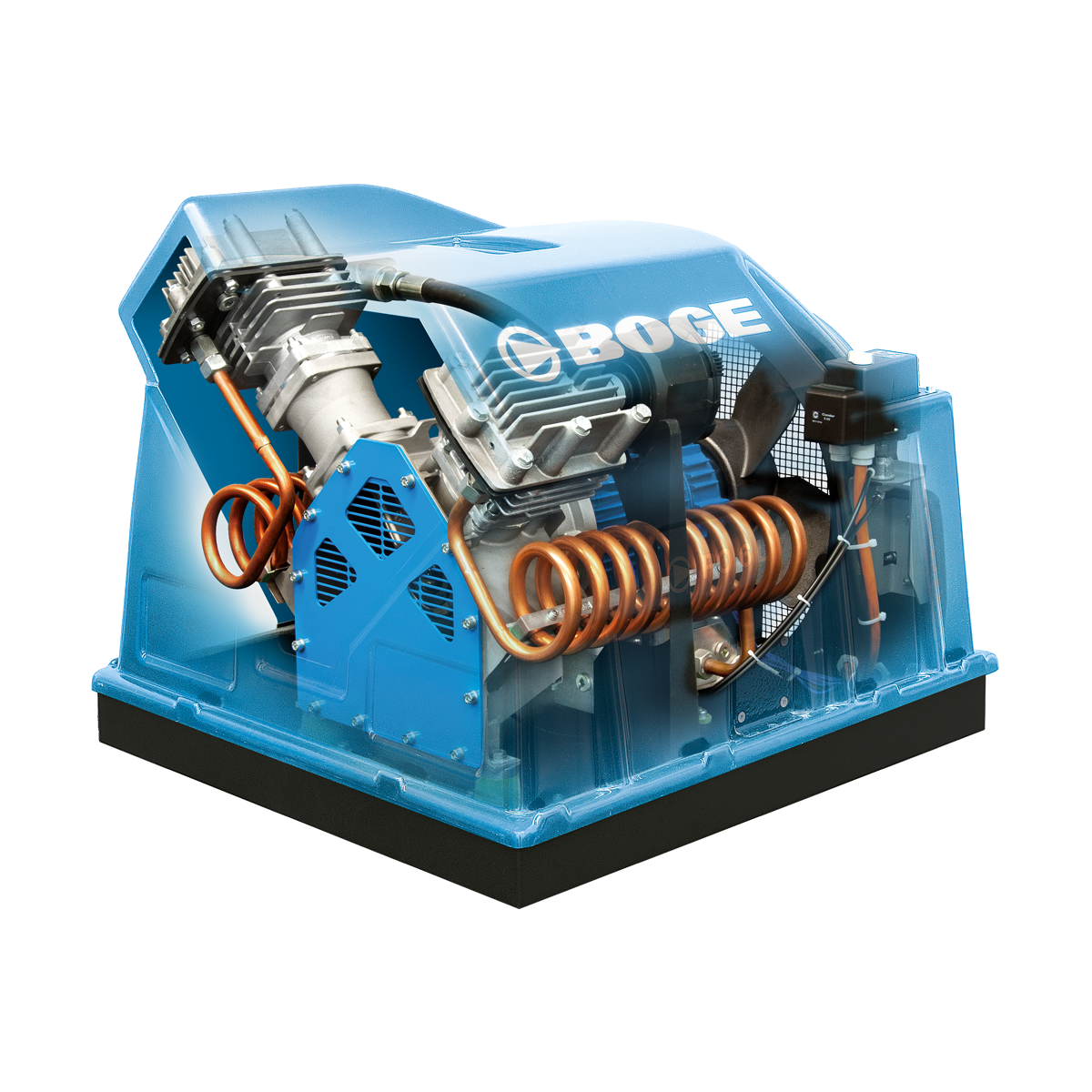

The completely oil-free piston compressors of the new PO Series produce high quality compressed air for even the most sensitive applications. The operation is wear-resistant and features an extremely compact design, with the closed hood concept combining industrial safety and environmental protection. The PO Series meets the requirements of the RoHS Directive (2002/95/EC) – proof of the innovative quality of BOGE.
PRODUCT
Oil free piston compressor, direct coupled
ADVANTAGES
- oil-free compressed air
- directly coupled
- designed for 100% duty cycle
- maximum efficiency
| BOGE | Pressure | Effective Delivery Volume* 50 Hz |
Motor Power | Dimensions W × H × D |
Weight |
|---|---|---|---|---|---|
| Type | barpsig | m3/mincfm | kWPS | mm | kg |
| PO 3 L | 10145 | 0.2468.7 | 2.23.0 | 811 x 759 x 694 | 114 |
| PO 3 L | 15218 | 0.2458.6 | 2.23.0 | 811 x 759 x 757 | 120 |
| PO 4 L | 10145 | 0.36212.8 | 3.04.0 | 811 x 759 x 694 | 120 |
| PO 4 L | 15218 | 0.28810.2 | 3.04.0 | 811 x 759 x 757 | 128 |
| PO 6 L | 10145 | 0.51218.1 | 4.05.5 | 811 x 759 x 694 | 127 |
| PO 6 L | 15218 | 0.45016.0 | 4.05.5 | 811 x 759 x 757 | 136 |
| PO 8 L | 10145 | 0.66823.6 | 5.58.0 | 811 x 759 x 694 | 137 |
* Measured at 80% of maximum pressure.
