High efficiency coalescing and dry particulate filters with very low pressure drop providing excellent energy savings. Removes water and oil aerosols, atmospheric dirt and solid particles, rust, pipe scale and micro-organisms from compressed air.

Download Product Range Brochure

Download GLAP Product Bulletin

Download GLXLP Product Bulletin

Download GLZLP Product Bulletin



PRODUCT OVERVIEW

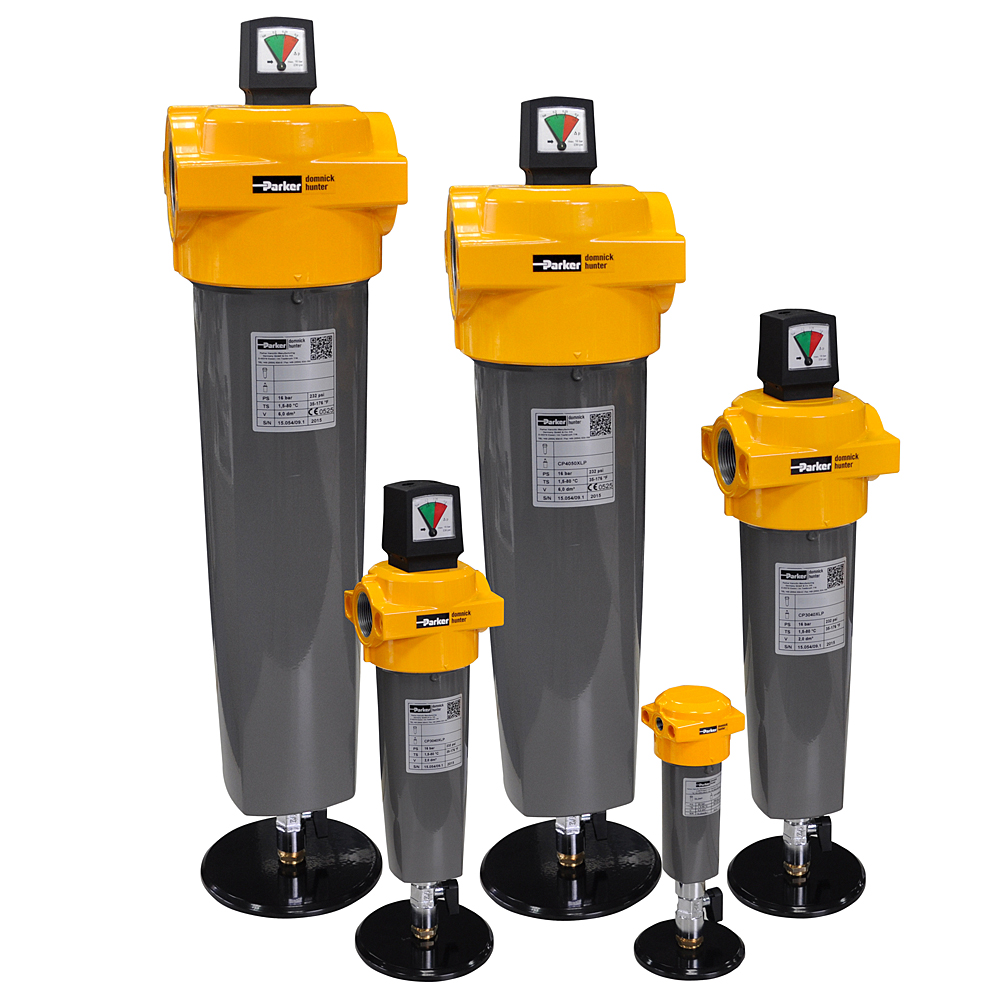

The Parker domnick hunter GL Plus range of die-cast compressed air filters has been designed from the outset to meet the air quality requirements of all editions of ISO8573-1, when validated in accordance with the stringent requirements of ISO12500-1.

An efficient and cost effective manufacturing process is a major factor in maintaining the profitability and growth of your business. All Parker domnick hunter products are designed to not only minimise the use of compressed air and electrical energy in their operation, but also to significantly reduce the operational costs of the compressor by minimising pressure losses.

GL Plus Filters incorporate a number of unique and patented design features to minimise differential pressure and provide a filter and element combination where the differential pressure starts low and stays low to maximise energy savings and provide the lowest lifetime costs without compromising air quality.

Features:

• For the removal of water and oil aerosols, atmospheric dirt and solid particles, rust, pipescale and micro-organisms

• Coalescing filter performance tested to the stringent requirements of ISO12500-1 and ISO8573-2

• Dry particulate filter performance tested in accordance with the requirements of ISO8573-4

Benefits:

• Highest air quality

• Lowest power consumption

• Lowest operational differential pressure

• Lowest CO2 emissions

• Lowest total cost of ownership

For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.

TECH SPECIFICATIONS

MAXIMUM OPERATING PRESSURE (BARG)                                       20
MAXIMUM OPERATING PRESSURE (PSIG)                                        80.09
WEIGHT (KG)                                                                                         0.55 to 15.30
WEIGHT (LBS)                                                                                       1.21 to 33.73
WIDTH (MM)                                                                                          67 to 192
WIDTH (INCH)                                                                                        2.64 to 7.56
HEIGHT (MM)                                                                                        200 to 867
HEIGHT (INCH)                                                                                      7.87 to 34.13
MAXIMUM FLOW RATE (CFM)                                                            1313.71
MICRON RATING n.a.,                                                                          1 or 0.01
FILTRATION EFFICIENCY n.a.,                                                             99.925% or 99.9999%
MATERIALS OF CONSTRUCTION                                                         Housing: Aluminium, Seals: NBR
MAXIMUM OPERATING TEMPERATURE (C)                                        100
MAXIMUM OPERATING TEMPERATURE (F)                                         212
MINIMUM OPERATING TEMPERATURE (C)                                          1.5
MINIMUM OPERATING TEMPERATURE (F)                                           35
DRAIN PORT SIZE                                                                                   1/8″ or n.a.
REPLACEMENT ELEMENT                                                                      CP1008AP, CP1008ZLP, CP1008XLP, CP2010AP, CP2010ZLP, CP2010XLP, CP2020AP, CP2020ZLP, CP2020XLP, CP3025AP, CP3025ZLP, CP3025XLP, CP3040AP, CP3040ZLP, CP3040XLP, CP4040AP, CP4040ZLP, CP4040XLP, CP4050AP, CP4050ZLP, CP4050XLP, CP4065AP, CP4065ZLP, CP4065XLP,
BRAND                                                                                                     Parker domnick hunter
CERTIFICATES                                                                                        PED, ASME VIII Div. 1, CRN, AS1210, TR
APPLICATION TYPE                                                                                Filtration of compressed air and gaseous nitrogen
RESIDUAL OIL CONTENT                                                                        0,003 @ 20° C mg/m³/h, 0,6 @ 20° C mg/m³/h or 0,01 @ 20° C mg/m³/h
PRE-TREATMENT REQUIREMENT                                                         XLP grade pre-filter necessary, separator in case of wall flow or ZLP grade pre-filter necessary
ELEMENT CHANGE INTERVAL                                                               max. 650 hours of operation or 12 months
PRE-INSTALLED OPTIONAL ACCESSORIES                                          Differential Pressure Gauge
