For applications requiring high pressure compressed air or nitrogen gas up to 50 bar with volume flows of up to 1180m³/h and pressure dew points down to -25/-40°C.

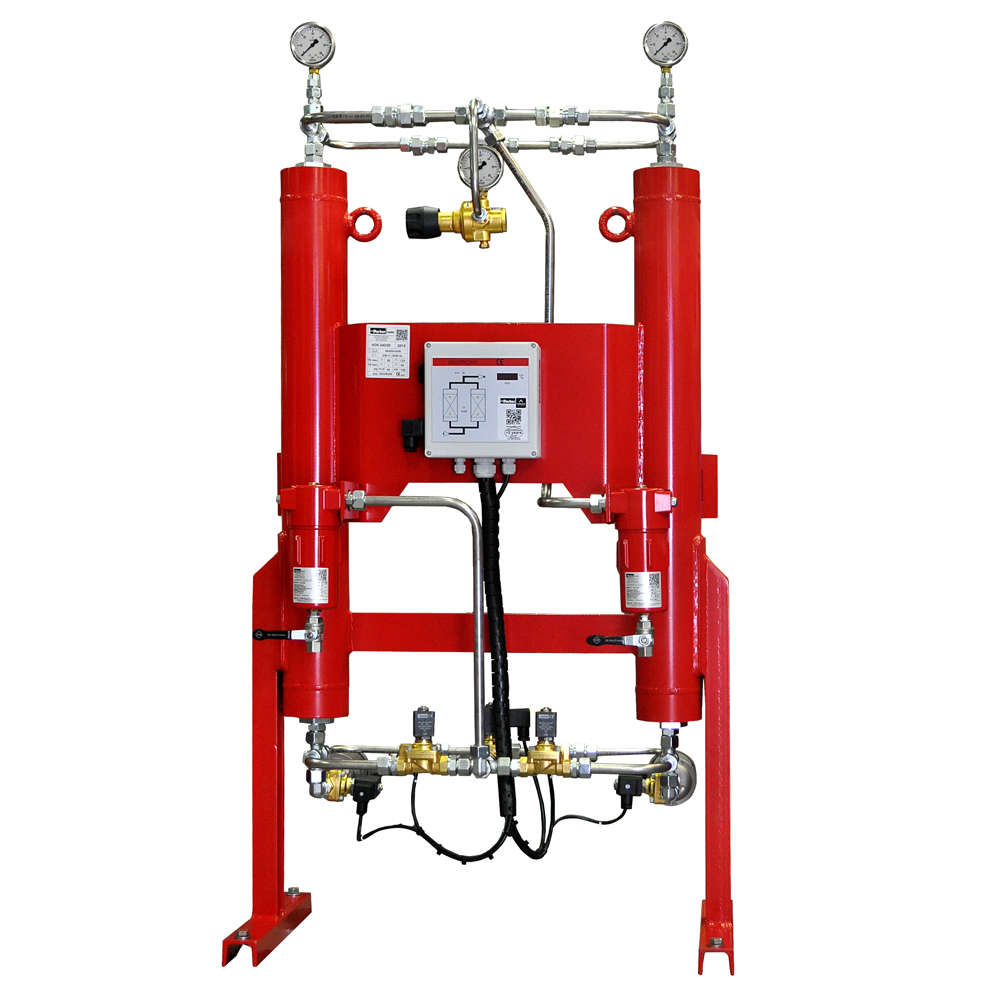

The Parker Zander HDK 50 bar range of high pressure compressed air dryers are designed to dry compressed air and gaseous nitrogen at high pressure levels of up to 50 bar reliably and efficiently down to a pressure dew point of -40°C. HDK series dryers come equipped with integrated Parker Zander G series pre- and after filtration and are capable of volume flows up to 1180 m³/h.
Typical applications for HDK series high pressure compressed air dryers are in power stations (i.e. start up of diesel generators) as well as marine applications (i.e. tank ventilation, rope tensioning on off-shore rigs, generator start up etc.).
Features:
• Pressure dew point down to -40°C
• Volume flows up to 1180 m³/h @ 50 bar g (725.19 psi g)
• Pre- and after filters installed as standard
Scope of supply:
• Ready to install high pressure adsorption dryer including dew-point control and mounted pre-and after filter
• Optional equipment available mounted ex-works
Available accessories:
• Start-up device
• High pressure differential pressure gauges for the filters
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
