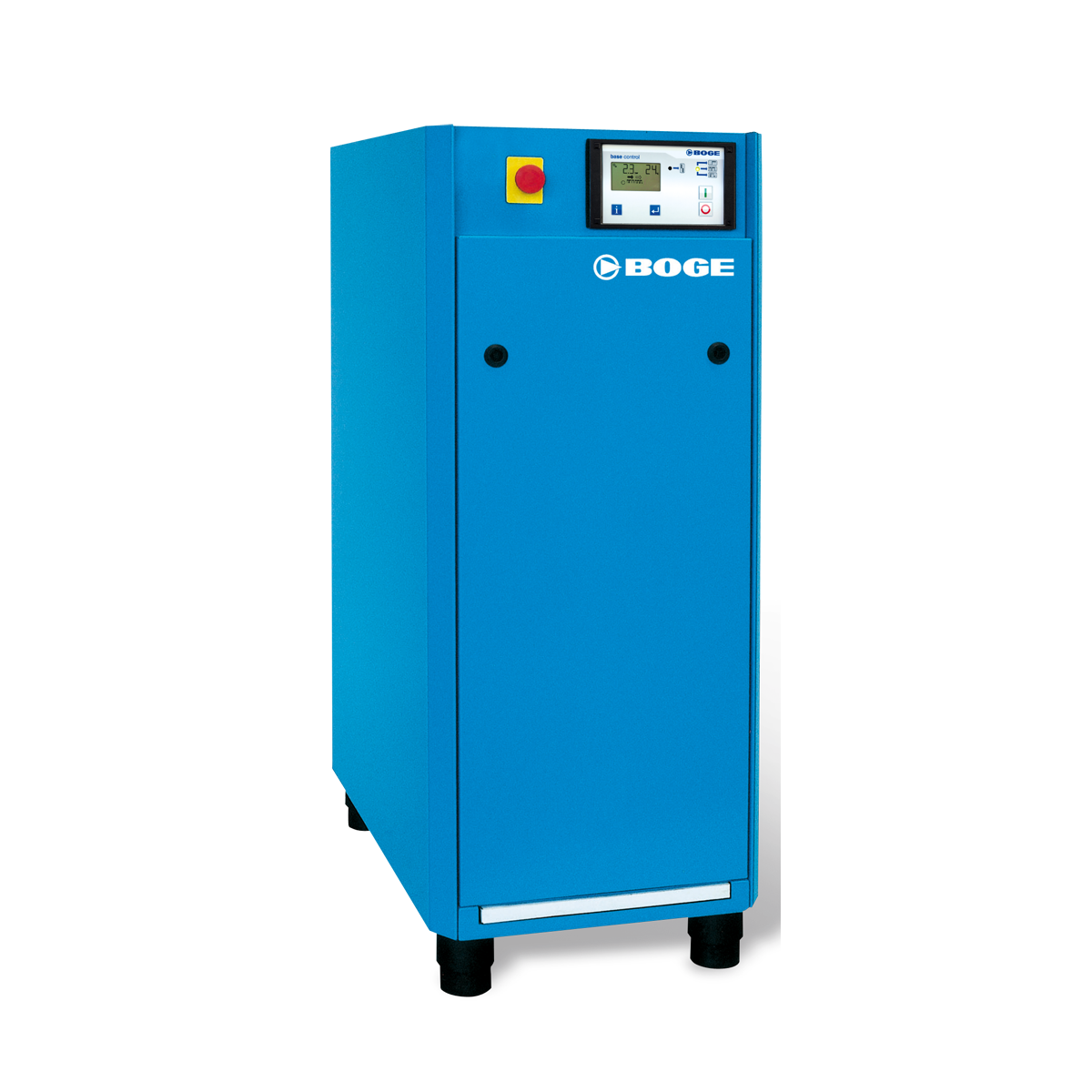

Performance to the point: the C Series screw compressors are compact and operate reliably and safely, even with consistently large compressed air requirements. Other advantages include their high efficiency and long service life. The built-in CD dryers take up little extra space due to the integrated design, meaning shorter connections and therefore the lowest possible pressure losses. So for large delivery quantities, only a very small amount of energy is needed.
PRODUCT
Compressed air station with dryer, oil lubricated
ADVANTAGES
- compact design
- refrigerant dryer included
- extremely quiet
- maximum efficiency
| BOGE | Pressure | Effective Delivery Volume 50 Hz |
Motor Power | Dimensions W × H × D |
Weight |
|---|---|---|---|---|---|
| Type | barpsig | m3/mincfm | kWPS | mm | kg |
| C 4 D | 8116 | 0.42715.1 | 3.04.0 | 480 x 987 x 1234 | 210 |
| C 4 D | 10145 | 0.34012.0 | 3.04.0 | 480 x 987 x 1234 | 210 |
| C 4 D | 13189 | 0.2197.7 | 3.04.0 | 480 x 987 x 1234 | 210 |
| C 5 D | 8116 | 0.60121.2 | 4.05.5 | 480 x 987 x 1234 | 215 |
| C 5 D | 10145 | 0.50617.9 | 4.05.5 | 480 x 987 x 1234 | 215 |
| C 5 D | 13189 | 0.38613.6 | 4.05.5 | 480 x 987 x 1234 | 215 |
| C 7 D | 8116 | 0.84729.9 | 5.57.5 | 480 x 987 x 1234 | 230 |
| C 7 D | 10145 | 0.73626.0 | 5.57.5 | 480 x 987 x 1234 | 230 |
| C 7 D | 13189 | 0.57620.3 | 5.57.5 | 480 x 987 x 1234 | 230 |
| C 9 D | 8116 | 1.18041.7 | 7.510.0 | 480 x 987 x 1234 | 235 |
| C 9 D | 10145 | 1.06037.4 | 7.510.0 | 480 x 987 x 1234 | 235 |
| C 9 D | 13189 | 0.87030.7 | 7.510.0 | 480 x 987 x 1234 | 235 |
