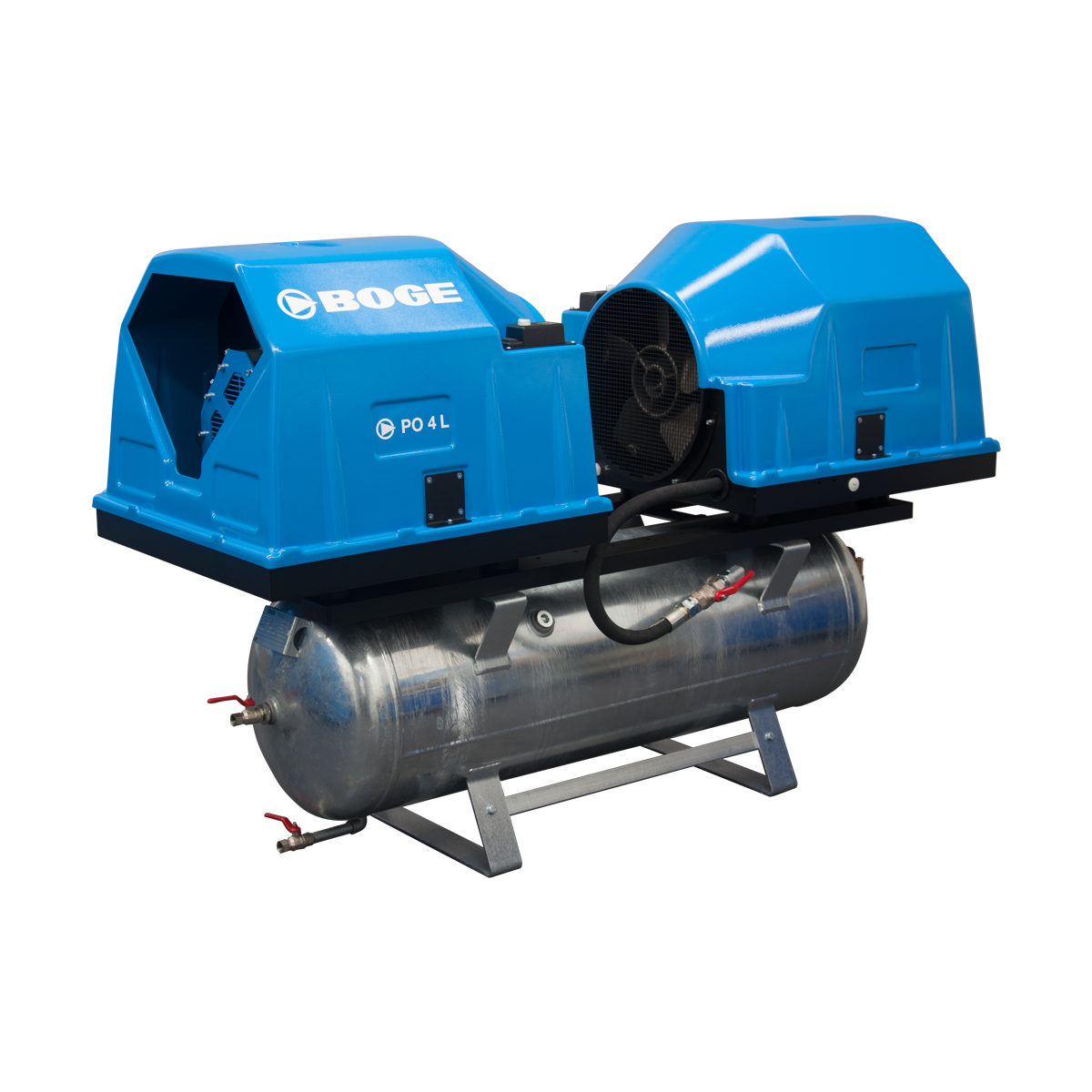

The completely oil-free piston compressors of the new PO Series produce high quality compressed air for even the most sensitive applications. The operation is wear-resistant and features an extremely compact design, with the closed hood concept combining industrial safety and environmental protection. The PO Series meets the requirements of the RoHS Directive (2002/95/EC) – proof of the innovative quality of BOGE. Double unit, mounted on a compressed air receiver.
PRODUCT
Oil free piston compressor, direct coupled,, double unit, compressed air receiver
ADVANTAGES
- oil-free compressed air
- directly coupled
- with receiver
- designed for 100% duty cycle
- available as twin unit
- maximum efficiency
| BOGE | Pressure | Effective Delivery Volume* 50 Hz |
Motor Power | Dimensions W × H × D |
Weight |
|---|---|---|---|---|---|
| Type | barpsig | m3/mincfm | kWPS | mm | kg |
| PO 3 LTR | 10145 | 0.49217.4 | 4.46.0 | 1950 x 750 x 1300 | 336 |
| PO 3 LTR | 15218 | 0.49017.2 | 4.46.0 | 1950 x 770 x 1430 | 358 |
| PO 4 LTR | 10145 | 0.72425.6 | 6.08.0 | 1950 x 750 x 1300 | 348 |
| PO 4 LTR | 15218 | 0.57620.4 | 6.08.0 | 1950 x 770 x 1430 | 400 |
| PO 6 LTR | 10145 | 1.02436.2 | 8.011.0 | 1950 x 750 x 1300 | 362 |
| PO 6 LTR | 15218 | 0.90032.0 | 8.011.0 | 1950 x 770 x 1430 | 432 |
| PO 8 LTR | 10145 | 1.33647.2 | 11.016.0 | 1950 x 750 x 1300 | 382 |
* Measured at 80% of maximum pressure.
