Maximum reliability in every situation: the modular piston compressors in this series are absolutely oil-free and reliable. The compressor is super-silenced and therefore very quiet during operation, while the modular design provides full flexibility in any application situation.
PRODUCT

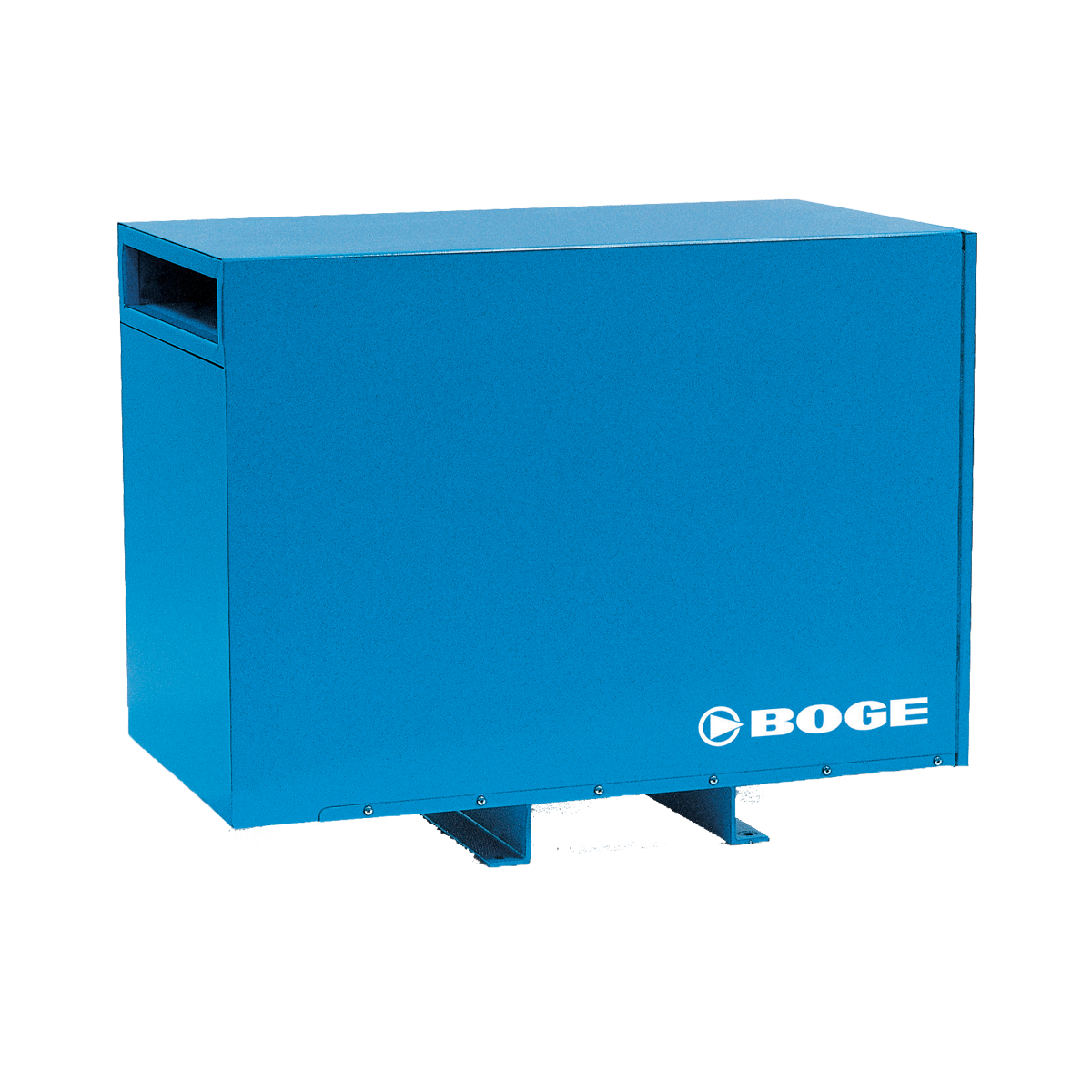

Oil free piston compressor, direct coupled, super-silenced
ADVANTAGES
- oil-free compressed air
- directly coupled
- designed for 100% duty cycle
| BOGE | Pressure | Effective Delivery Volume* 50 Hz |
Motor Power | Dimensions W × H × D |
Weight |
|---|---|---|---|---|---|
| Type | barpsig | m3/mincfm | kWPS | mm | kg |
| ASOL 260 | 8115 | 0.1766.0 | 1.52.0 | 915 x 480 x 730 | 121 |
| ASOL 260 | 10150 | 0.1565.5 | 1.52.0 | 915 x 480 x 730 | 121 |
| ASOL 370 | 8115 | 0.27510.0 | 2.23.0 | 915 x 480 x 730 | 121 |
| ASOL 370 | 10150 | 0.2569.0 | 2.23.0 | 915 x 480 x 730 | 121 |
| ASOL 480 | 8115 | 0.36713.0 | 3.24.5 | 915 x 480 x 730 | 123 |
| ASOL 480 | 10150 | 0.33912.0 | 3.24.5 | 915 x 480 x 730 | 123 |
* Measured at 80% of maximum pressure.
