The belt-driven compressor with integrated frequency controller ensures the best efficiency: as your compressed air requirements decrease, the energy consumption of the compressors decreases, idle times are minimised and pressure fluctuations are levelled off. Smooth starts and stops protect the materials and extend the lifespan.
PRODUCT

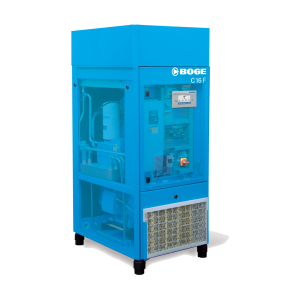

Screw compressor with frequency control, oil lubricated
ADVANTAGES
- heat recovery can be integrated
- compact design
- extremely quiet
- maximum efficiency
- frequency control
| BOGE | Pressure | Effective Delivery Volume 50 Hz |
Motor Power | Dimensions W × H × D |
Weight |
|---|---|---|---|---|---|
| Type | barpsig | m3/mincfm | kWPS | mm | kg |
| C 15 F | 8116 | 1.74061.4 | 11.015.0 | 722 x 1080 x 1582 | 424 |
| C 15 F | 10145 | 1.53054.0 | 11.015.0 | 722 x 1080 x 1582 | 424 |
| C 15 F | 13189 | 1.33047.0 | 11.015.0 | 722 x 1080 x 1582 | 424 |
| C 16 F | 8116 | 1.96069.2 | 11.015.0 | 722 x 1080 x 1740 | 499 |
| C 16 F | 10145 | 1.71060.7 | 11.015.0 | 722 x 1080 x 1740 | 499 |
| C 16 F | 13189 | 1.31048.4 | 11.015.0 | 722 x 1080 x 1740 | 499 |
| C 20 F | 8116 | 2.55090.1 | 15.020.0 | 722 x 1080 x 1740 | 507 |
| C 20 F | 10145 | 2.25079.5 | 15.020.0 | 722 x 1080 x 1740 | 507 |
| C 20 F | 13189 | 1.89066.7 | 15.020.0 | 722 x 1080 x 1740 | 507 |
| C 25 F | 8116 | 3.100109.5 | 18.525.0 | 722 x 1080 x 1740 | 571 |
| C 25 F | 10145 | 2.71095.7 | 18.525.0 | 722 x 1080 x 1740 | 571 |
| C 25 F | 13189 | 2.32081.9 | 18.525.0 | 722 x 1080 x 1740 | 571 |
| C 30 F | 8116 | 3.620127.8 | 22.030.0 | 722 x 1080 x 1740 | 571 |
| C 30 F | 10145 | 3.210113.4 | 22.030.0 | 722 x 1080 x 1740 | 571 |
| C 30 F | 13189 | 2.74096.8 | 22.030.0 | 722 x 1080 x 1740 | 571 |
