In a class of its own: the compressors of the 15 kW C Series. The BOGE compact module is integrated, making long connections unnecessary. Integrated refrigerant dryers and compressed air receivers complete these screw compressors.
PRODUCT

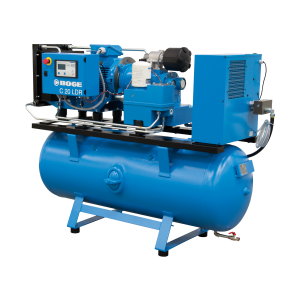

Screw compressor with refrigerant dryer mounted on a compressed air receiver, direct coupled, oil lubricatedair receiver, direct coupled, oil lubricated
ADVANTAGES
- heat recovery can be integrated
- compact design
- refrigerant dryer included
| BOGE | Pressure | Effective Delivery Volume 50 Hz |
Motor Power | Dimensions W × H × D |
Weight |
|---|---|---|---|---|---|
| Type | barpsig | m3/mincfm | kWPS | mm | kg |
| C 10 LDR | 8115 | 1.05037.1 | 7.510.0 | 1960 x 720 x 1350 | 350 |
| C 10 LDR | 10150 | 1.03036.4 | 7.510.0 | 1960 x 720 x 1350 | 350 |
| C 15 LDR | 8115 | 1.81063.9 | 11.015.0 | 1960 x 720 x 1365 | 380 |
| C 15 LDR | 10150 | 1.74061.4 | 11.015.0 | 1960 x 720 x 1365 | 380 |
| C 20 LDR | 8115 | 2.25079.5 | 15.020.0 | 1960 x 720 x 1365 | 380 |
| C 20 LDR | 10150 | 2.22078.4 | 15.020.0 | 1960 x 720 x 1365 | 380 |
