Short connections and fewer pipes thanks to integrated design with the BOGE compact module – the C Series is space-saving, extremely efficient and reliable.
PRODUCT

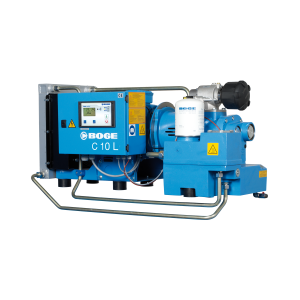

Compact screw compressor, direct coupled, oil lubricated
ADVANTAGES
- heat recovery can be integrated
- compact design
- directly coupled
- extremely quiet
- maximum efficiency
| BOGE | Pressure | Effective Delivery Volume 50 Hz |
Motor Power | Dimensions W × H × D |
Weight |
|---|---|---|---|---|---|
| Type | barpsig | m3/mincfm | kWPS | mm | kg |
| C 10 L | 8116 | 1.05037.1 | 7.510.0 | 1171 x 599 x 595 | 260 |
| C 10 L | 10145 | 1.03036.4 | 7.510.0 | 1171 x 599 x 595 | 260 |
| C 15 L | 8116 | 1.81063.9 | 11.015.0 | 1330 x 600 x 610 | 290 |
| C 15 L | 10145 | 1.74061.4 | 11.015.0 | 1330 x 600 x 610 | 290 |
| C 20 L | 8116 | 2.25079.5 | 15.020.0 | 1330 x 600 x 610 | 300 |
| C 20 L | 10145 | 2.22078.4 | 15.020.0 | 1330 x 600 x 610 | 300 |
