Wherever space plays a role, the BOGE C (D)R series comes into its own, because its small footprint allows it to be installed at the workplace, right where it is needed. Each of the individual elements – from the receiver to the optional refrigerant dryer and oil/water seperator – come ready assembled and are delivered as a compact unit, ready for connection. In addition, the super selinced sound insulation ensures particularly quiet running. The pre-assembled pipework ensures tat both the installation work and space required are kept to an absolute minimum.
PRODUCT

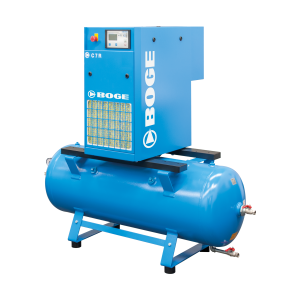

Compact screw compressor mounted on a compressed air receiver, oil lubricated.
ADVANTAGES
compact design with receiver extremely quiet maximum efficiency
ADVANTAGES
- compact design
- extremely quiet
- maximum efficiency
| BOGE | Pressure | Effective Delivery Volume 50 Hz |
Motor Power | Dimensions W × H × D |
Weight |
|---|---|---|---|---|---|
| Type | barpsig | m3/mincfm | kWPS | mm | kg |
| C 4 R | 8116 | 0.42715.1 | 3.04.0 | 1880 x 927 x 1549 | 345 |
| C 4 R | 10145 | 0.34012.0 | 3.04.0 | 1880 x 927 x 1549 | 345 |
| C 4 R | 13190 | 0.2197.7 | 3.04.0 | 1880 x 927 x 1549 | 345 |
| C 5 R | 8116 | 0.60121.2 | 4.05.5 | 1880 x 927 x 1549 | 350 |
| C 5 R | 10145 | 0.50617.9 | 4.05.5 | 1880 x 927 x 1549 | 350 |
| C 5 R | 13190 | 0.38613.6 | 4.05.5 | 1880 x 927 x 1549 | 350 |
| C 7 R | 8116 | 0.84729.9 | 5.57.5 | 1880 x 927 x 1549 | 365 |
| C 7 R | 10145 | 0.73626.0 | 5.57.5 | 1880 x 927 x 1549 | 365 |
| C 7 R | 13190 | 0.57620.3 | 5.57.5 | 1880 x 927 x 1549 | 365 |
| C 9 R | 8116 | 1.18041.7 | 7.510.0 | 1880 x 927 x 1549 | 370 |
| C 9 R | 10145 | 1.06037.4 | 7.510.0 | 1880 x 927 x 1549 | 370 |
| C 9 R | 13190 | 0.87030.7 | 7.510.0 | 1880 x 927 x 1549 | 370 |
