The directly coupled screw compressors of this series used with the frequency-controlled drive create a very flexible system. This means that the delivery quantity is ideally tailored to your requirements and to the air pressure value. The refrigerant dryer produces reliable dry compressed air while taking up no extra space. The compressed air receiver comes pre-assembled.
PRODUCT

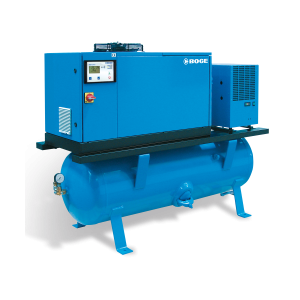

Frequency controlled screw compressor with refrigerant dryer mounted on a compressed air receiver, direct coupled, oil lubricated
ADVANTAGES
- compact design
- refrigerant dryer included
- directly coupled
- with receiver
- extremely quiet
- maximum efficiency
- frequency control
| BOGE | Pressure | Effective Delivery Volume 50 Hz |
Motor Power | Dimensions W × H × D |
Weight |
|---|---|---|---|---|---|
| Type | barpsig | m3/mincfm | kWPS | mm | kg |
| C 9 LFDR | 8116 | 1.27045.0 | 7.510.0 | 1720 x 745 x 1320 | 370 |
| C 9 LFDR | 10145 | 1.12039.5 | 7.510.0 | 1720 x 745 x 1320 | 370 |
| C 9 LFDR | 13189 | 0.93033.0 | 7.510.0 | 1720 x 745 x 1320 | 370 |
