Efficiency and reliability that sets new standards: for the 7.5 kW C Series, the larger BOGE compact module is integrated. This eliminates long connections and internal piping. These screw compressors come equipped with refrigerant dryers and compressed air receivers.
PRODUCT

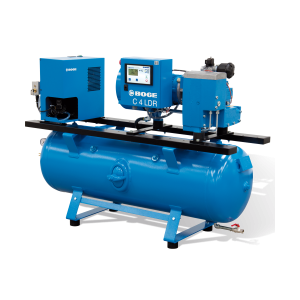

Screw compressor with refrigerant dryer mounted on a compressed air receiver, direct coupled, oil lubricated
ADVANTAGES
- compact design
- refrigerant dryer included
- directly coupled
- with receiver
- extremely quiet
- maximum efficiency
| BOGE | Pressure | Effective Delivery Volume 50 Hz |
Motor Power | Dimensions W × H × D |
Weight |
|---|---|---|---|---|---|
| Type | barpsig | m3/mincfm | kWPS | mm | kg |
| C 3 LDR | 10145 | 0.2408.5 | 2.23.0 | 1723 x 675 x 1205 | 225 |
| C 4 LDR | 10145 | 0.34012.0 | 3.04.0 | 1723 x 675 x 1205 | 230 |
| C 4 LDR | 13189 | 0.2348.5 | 3.04.0 | 1723 x 675 x 1205 | 230 |
| C 5 LDR | 10145 | 0.54519.0 | 4.05.5 | 1723 x 675 x 1205 | 245 |
| C 7 LDR | 10145 | 0.72825.5 | 5.57.5 | 1723 x 675 x 1205 | 250 |
| C 7 LDR | 13189 | 0.52518.5 | 5.57.5 | 1723 x 675 x 1205 | 250 |
