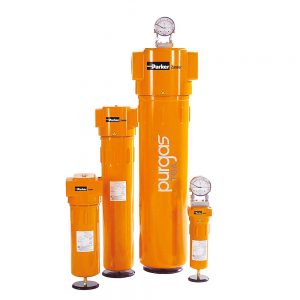

Parker Zander TGA series filters for technical and industrial gas treatment applications up to 50 bar(g)
Purgas filters from Parker Zander offer a wide selection of separation techniques for solid and liquid particles as well as vapours from critical industrial gases and natural gasses, as standard.
The TGA filter series is available for pressure levels PN16, PN25 and PN50. They are characterised by the employment of high-quality materials, thorough cleaning and production methods, as well as the traceability of the products. The housings are made of aluminium casting, internally and externally chromated, and they also have an additional epoxy coating on their exterior for additional protection. All TGA filters are equipped with a stainless steel needle valve on the outlet, as standard.
A variety of different elements are available for the separation: separator/demister inserts, surface filter elements for coarse separation, micro filter
elements for depth filtration, as well as cartridge inserts for the adsorption of oil vapours and moisture.
Optionally, filters from the TGA series can be supplied in a dissipative design with classification based on Ex II 2G.
Applications:
– Critical industrial gases and natural gases according in fluid group 1 as per directive 97/23/EC (Pressure Equipment Directive)
– Zones 1 and 2 as per directive 94/9/EC (ATEX Directive)
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
