INDEPENDENTLY PRODUCE NITROGEN: THE BOGE N…P SERIES
In membrane technology, the compressed air supplied is separated from other gases such as oxygen, carbon dioxide, and steam using a membrane made of hollow plastic fibres, so that enriched nitrogen forms. Unlike in the PSA technology, there are few mechanically stressed components, the generators are more compact, and the product dew point is considerably lower with up to -70°. In addition, there is no need for an adsorption or refrigeration dryer, no for an air tank between the air compressor and the nitrogen generator.
PRODUCT

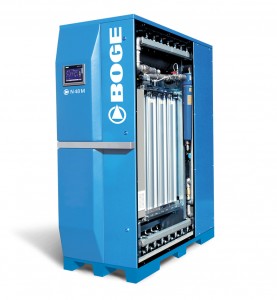

Nitrogen Membrane Generators
| BOGE | Pressure | Effective Delivery Volume 50 Hz |
Motor Power | Dimensions W × H × D |
Weight |
|---|---|---|---|---|---|
| Type | barpsig | Nm3/h | kWPS | mm | kg |
| N 6 M | 10145 | 0.180 | 0.00.0 | 777 x 1210 x 2054 | 315 |
| N 12 M | 10145 | 0.370 | 0.00.0 | 777 x 1210 x 2054 | 330 |
| N 18 M | 10145 | 0.550 | 0.00.0 | 777 x 1210 x 2054 | 380 |
| N 24 M | 10145 | 0.730 | 0.00.0 | 777 x 1210 x 2054 | 395 |
| N 30 M | 10145 | 0.920 | 0.00.0 | 780 x 1740 x 2050 | 500 |
| N 36 M | 10145 | 1.100 | 0.00.0 | 780 x 1740 x 2050 | 515 |
| N 42 M | 10145 | 1.280 | 0.00.0 | 780 x 1740 x 2050 | 565 |
| N 48 M | 10145 | 1.470 | 0.00.0 | 780 x 1740 x 2050 | 580 |
